Description

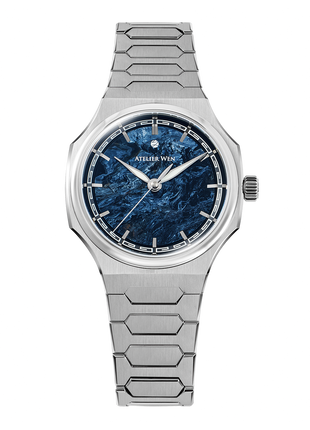

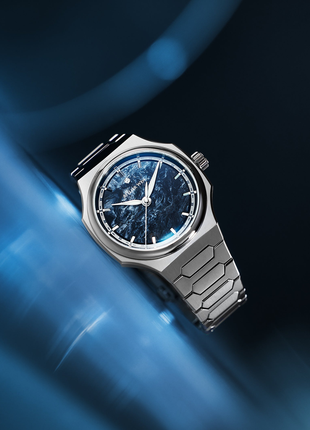

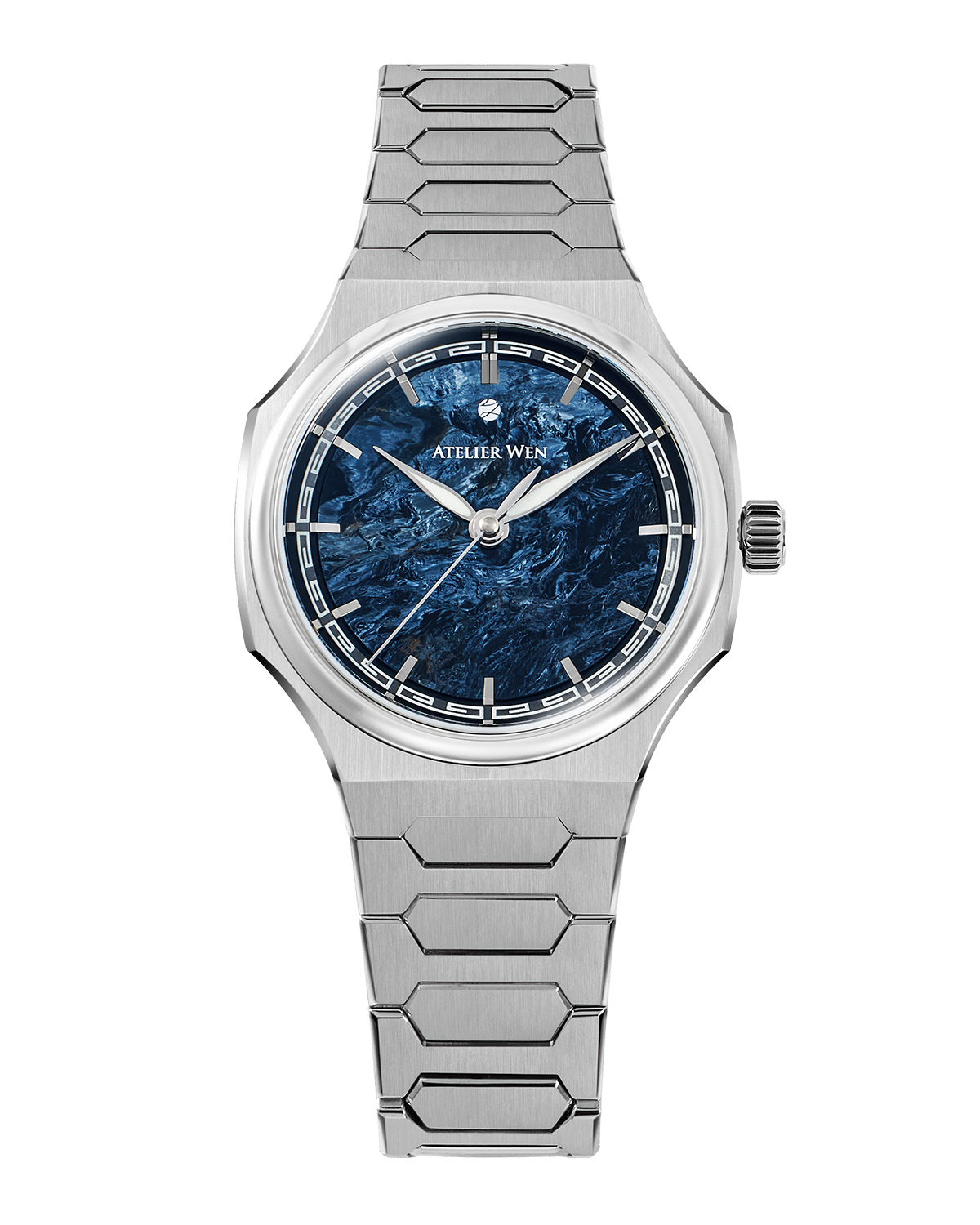

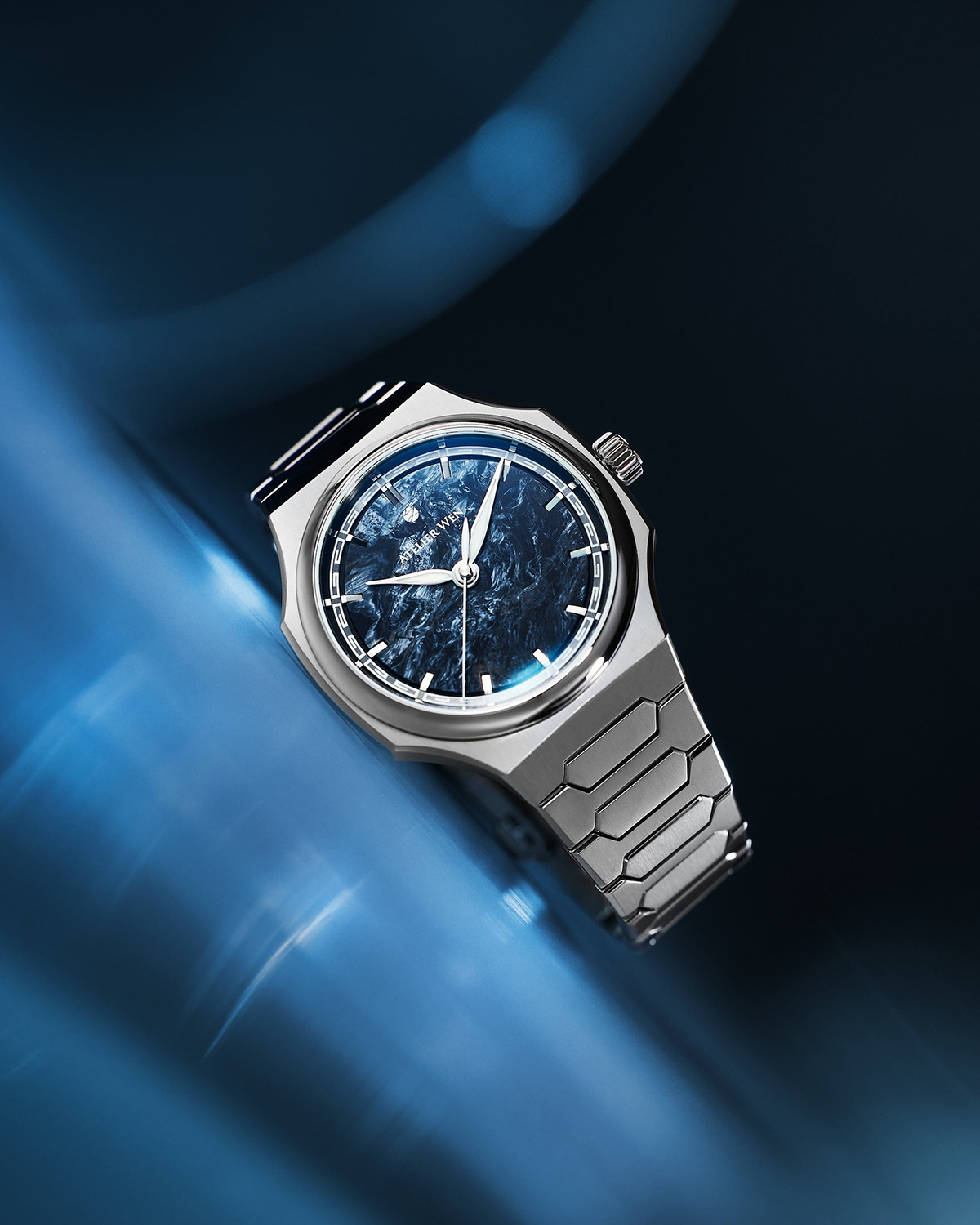

The Atelier Wen Perception Xuan (漩) pairs the structured architecture of the Perception case with a natural pietersite dial - each one cut from stone, each one visually distinct.
The result is a watch that feels controlled in design, but organic in detail.
Inspiration & Design
Perception is built around traditional Chinese architectural principles, reinterpreted into a modern sports watch.
The case and bracelet reference sloped rooftops and geometric windows, while the dial construction draws from 榫卯 (sunmao) — a friction-based joinery system used without nails or glue.
The Xuan edition adds a material layer to this concept.
Its pietersite dial reflects 山水盆景 (mountain-water landscapes) — flowing patterns resembling streams against darker quartz structures. No two dials share the same composition.
Dial & Case Details

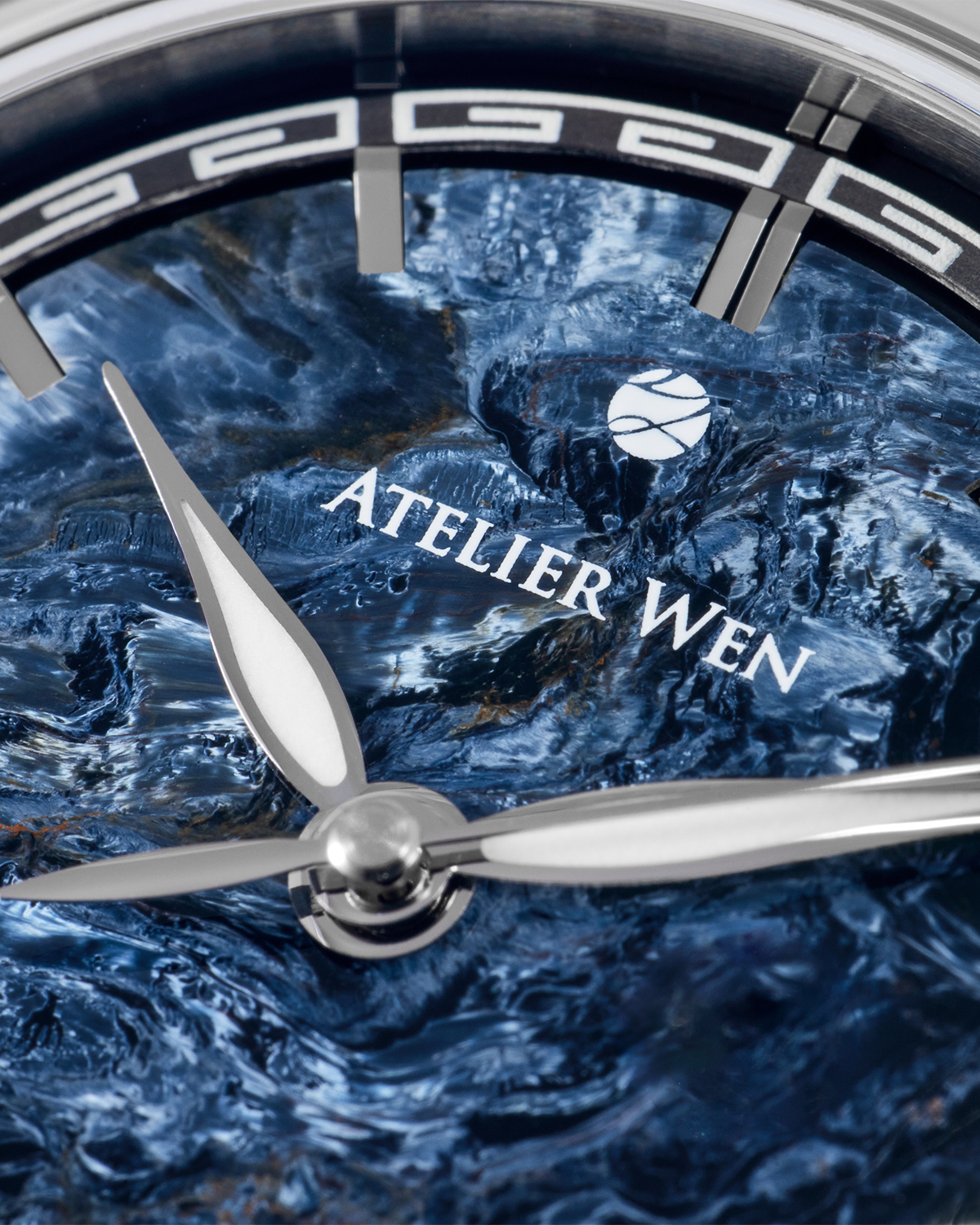

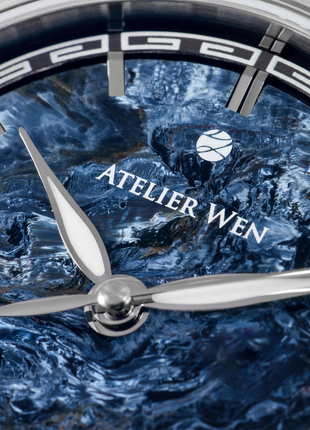

The dial is cut from natural pietersite, revealing layered, iridescent textures unique to each watch.
A four-layer dial construction creates depth, framed by a black PVD huiwen-patterned chapter ring filled with X1-grade Super-LumiNova.
Rhodium-plated indices and leaf-shaped hands provide contrast without overpowering the stone surface.
The 904L steel case features a mix of brushed and polished surfaces with sharp transitions and tight finishing.
- 40mm diameter
- 47mm lug-to-lug
- 9.4mm thickness
- Screw-down crown, 100m water resistance

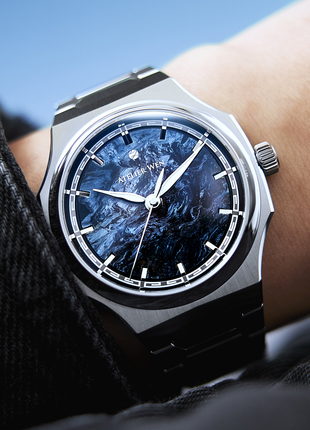

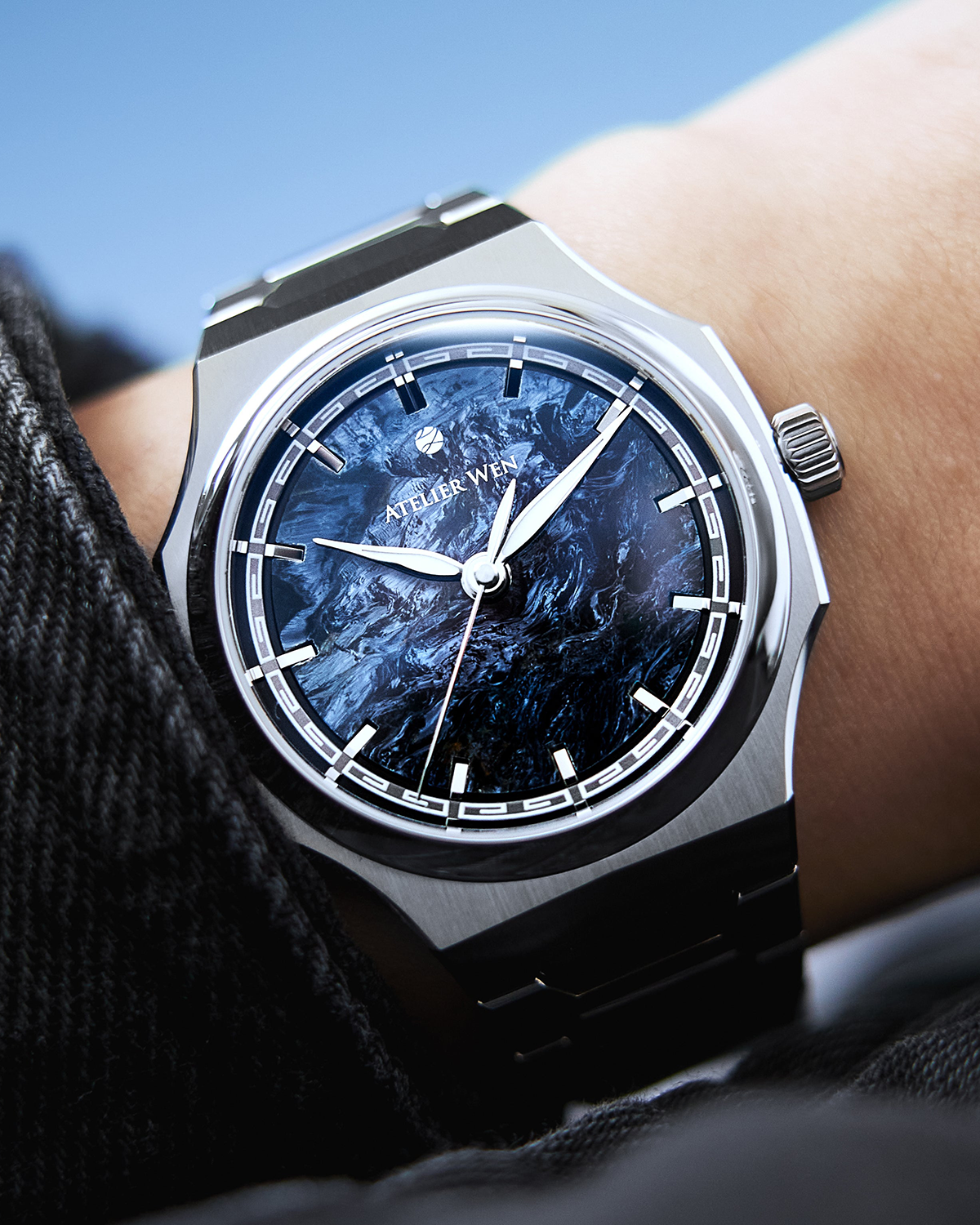

Wears compact, closer to a 38–39mm profile.
Movement & Mechanics
The Perception Xuan is powered by the customised SL1588 automatic movement.
At 3.4mm thin, it enables the overall case to stay slim while maintaining mechanical robustness.
- 28,800 bph (4Hz)
- ~41-hour power reserve
- Regulated to ±10 seconds/day
- Adjusted in 5 positions and temperature
Finished with circular côtes de Genève, heat-blued screws, and a tungsten rotor with black rhodium plating.

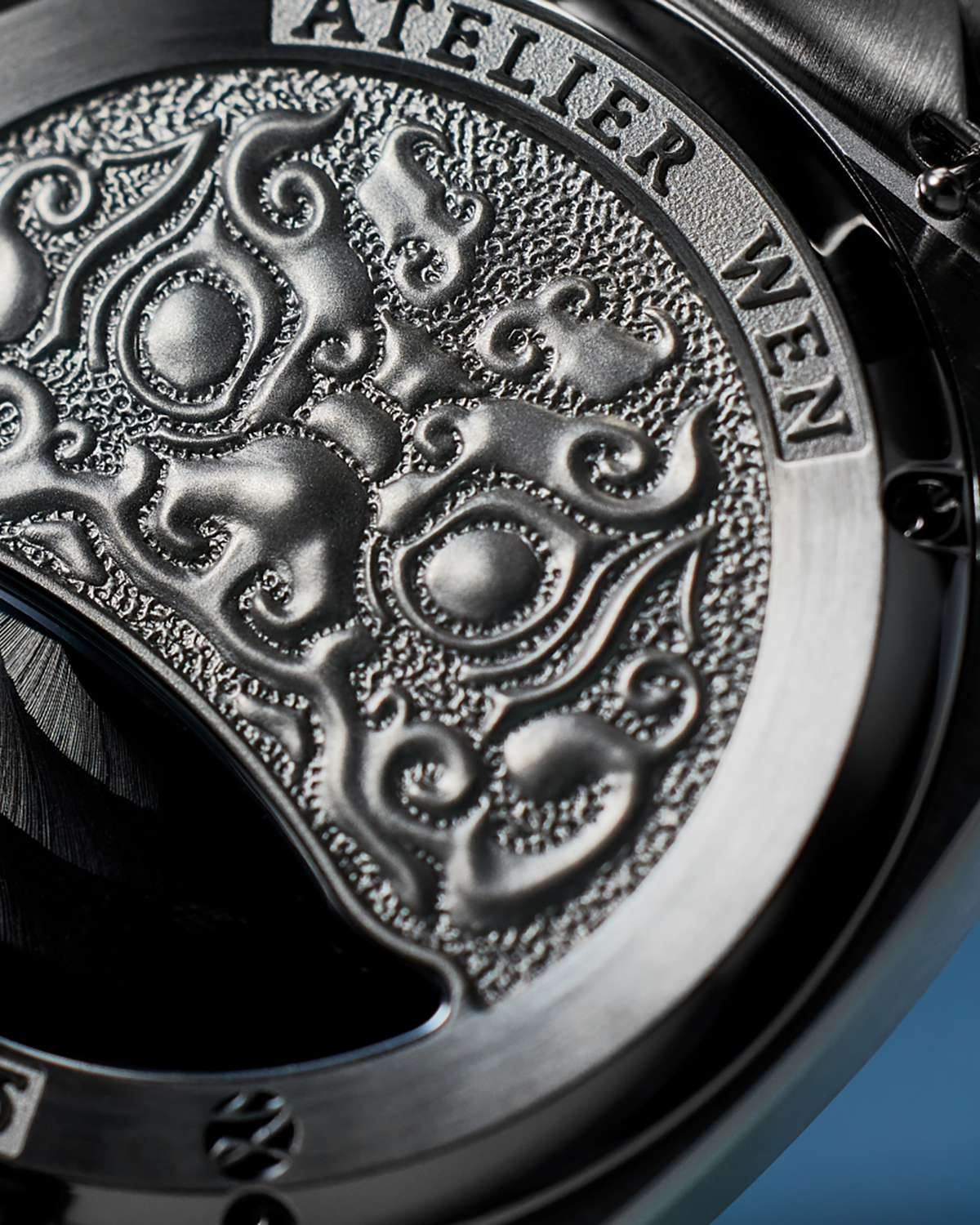

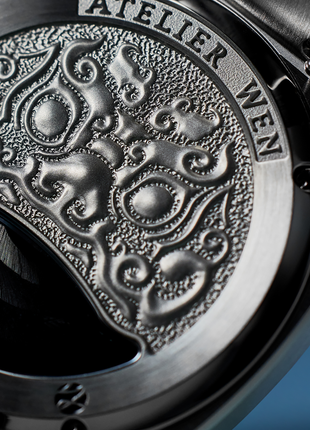

The semi-display caseback reveals key movement components, framed by a hammered texture and raised stone lion motif.
Bracelet & Wearability
The integrated 904L bracelet is engineered to match the case - not just visually, but structurally.
- Tapers from 22mm to 18mm
- Gradual thickness reduction for comfort
- Quick-release spring bars
The proprietary on-the-fly micro-adjustment and telescopic deployant clasp allow for precise, tool-free sizing.
Final Impression
The Perception Xuan is not loud, but it is distinctive.
The stone dial introduces natural variation, while the architecture keeps the watch grounded and precise.
It’s a piece that reveals more over time - especially on wrist.
Availability
Preorder now at Red Army Watches Singapore. Batched deliveries scheduled for Q2 and Q4 2026.
Technical Specifications
| Limited edition: |
Limited release with the first 225 pieces (batch 1) being individually numbered |
| Case size: |
40mm |
| Case material: |
904L stainless steel case |
| Case back: |
Semi-exhibition caseback, sapphire crystal; with hammered texture surround raised stone lion motif |
| Movement type: |
Automatic |
| Movement no.: |
Customised, extra-thin (3.4mm) Dandong Peacock SL1588A |
| Power reserve: |
Approx 41hrs |
| Dial: |
Natural pietersite dial - no two watches are the same; four-layered dial construction, inspired by ancient Chinese architectural tenets of Sunmao (friction/imbrication through mortise and tenon joints) Chinese huiwen-patterned chapter ring, printed in Super-LumiNova ®, X1 grade, PVD-plated in black applied rhodium-plated indices |
| Glass: |
Sapphire crystal with 10 layers of anti-reflective coating |
| Water resistance: |
10ATM |
| Strap type: |
Bracelet |
| Strap material: |
904L brushed stainless steel bracelet with quick-release springbars |
| Buckle: |
Deployant clasp |
| Warranty: |
5 years |
