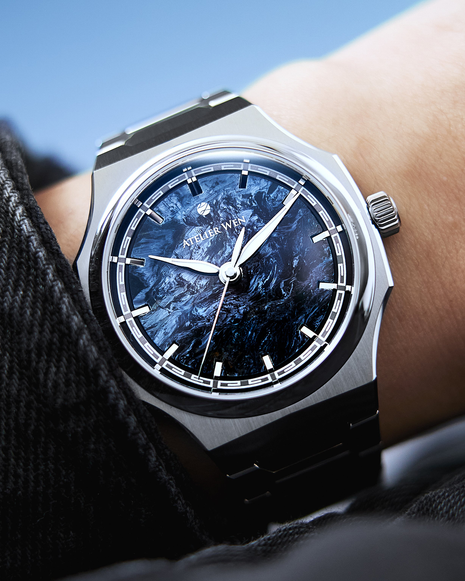

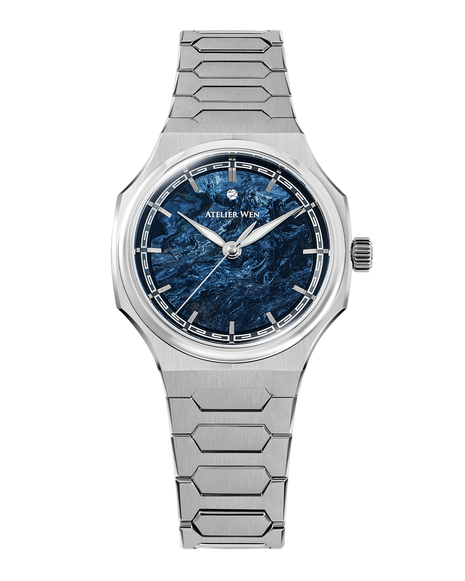

The Atelier Wen Perception Xuan (漩) pairs the structured architecture of the Perception case with a natural pietersite dial - each one cut from stone, each one visually distinct.
The result is a watch that feels controlled in design, but organic in detail.
Inspiration & Design
Perception is built around traditional Chinese architectural principles, reinterpreted into a modern sports watch.
The case and bracelet reference sloped rooftops and geometric windows, while the dial construction draws from 榫卯 (sunmao) — a friction-based joinery system used without nails or glue.
The Xuan edition adds a material layer to this concept.
Its pietersite dial reflects 山水盆景 (mountain-water landscapes) — flowing patterns resembling streams against darker quartz structures. No two dials share the same composition.
Dial & Case Details
The dial is cut from natural pietersite, revealing layered, iridescent textures unique to each watch.
A four-layer dial construction creates depth, framed by a black PVD huiwen-patterned chapter ring filled with X1-grade Super-LumiNova.
Rhodium-plated indices and leaf-shaped hands provide contrast without overpowering the stone surface.
The 904L steel case features a mix of brushed and polished surfaces with sharp transitions and tight finishing.
40mm diameter
47mm lug-to-lug
9.4mm thickness
Screw-down crown, 100m water resistance
Wears compact, closer to a 38–39mm profile.
Movement & Mechanics
The Perception Xuan is powered by the customised SL1588 automatic movement.
At 3.4mm thin, it enables the overall case to stay slim while maintaining mechanical robustness.
28,800 bph (4Hz)
~41-hour power reserve
Regulated to ±10 seconds/day
Adjusted in 5 positions and temperature
Finished with circular côtes de Genève, heat-blued screws, and a tungsten rotor with black rhodium plating.
The semi-display caseback reveals key movement components, framed by a hammered texture and raised stone lion motif.
Bracelet & Wearability
The integrated 904L bracelet is engineered to match the case - not just visually, but structurally.
Tapers from 22mm to 18mm
Gradual thickness reduction for comfort
Quick-release spring bars
The proprietary on-the-fly micro-adjustment and telescopic deployant clasp allow for precise, tool-free sizing.
Final Impression
The Perception Xuan is not loud, but it is distinctive.
The stone dial introduces natural variation, while the architecture keeps the watch grounded and precise.
It’s a piece that reveals more over time - especially on wrist.
Availability
Preorder now at Red Army Watches Singapore. Batched deliveries scheduled for Q2 and Q4 2026.
Technical Specifications
Limited edition:
Limited release with the first 225 pieces (batch 1) being individually numbered
Case size:
40mm
Case material:
904L stainless steel case
Case back:
Semi-exhibition caseback, sapphire crystal; with hammered texture surround raised stone lion motif
Movement type:
Automatic
Movement no.:
Customised, extra-thin (3.4mm) Dandong Peacock SL1588A
Power reserve:
Approx 41hrs
Dial:
Natural pietersite dial - no two watches are the same; four-layered dial construction, inspired by ancient Chinese architectural tenets of Sunmao (friction/imbrication through mortise and tenon joints) Chinese huiwen-patterned chapter ring, printed in Super-LumiNova ®, X1 grade, PVD-plated in black applied rhodium-plated indices
Glass:
Sapphire crystal with 10 layers of anti-reflective coating
Water resistance:
10ATM
Strap type:
Bracelet
Strap material:
904L brushed stainless steel bracelet with quick-release springbars
Buckle:
Deployant clasp
Warranty:
5 years
